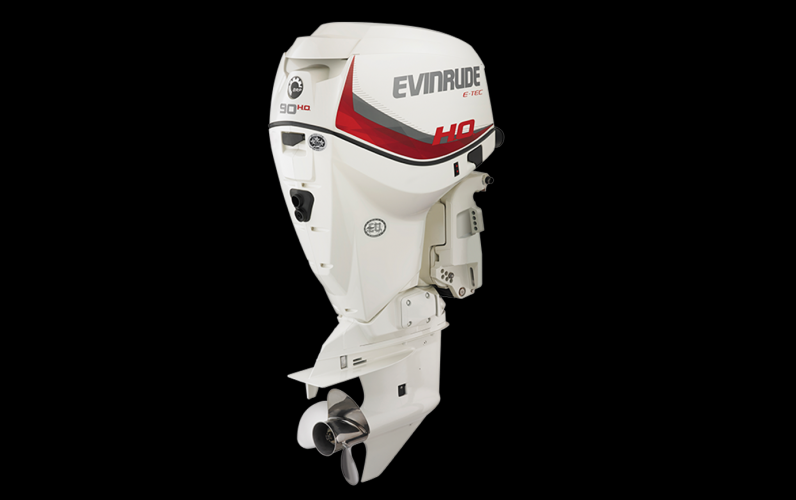

E-TEC 90 HO

BRAND: EVINRUDE
TYPE:    H.O. SERIES
MODEL: H.O. SERIES
VERSION: 90 H.O.
SPECIFICATIONS
ENGINE MODEL
«E90DHL (BLUE), E90HSL (WHITE), E90HSX (WHITE)»
ENGINE TYPE
V4 60° E-TEC D.I.
BORE X STROKE IN (MM)
3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC)
105.4 (1726) 1.7L
GEAR RATIO (SHAFT LENGTH)1   2.00:1 (20”) / 2.25:1 (25”)
FULL THROTTLE RPM RANGE
5500-6000 RPM
WEIGHT IN LBS (KG) (HP)2
390 (177 KG) (20”) / 405 (184KG) (25”)
STARTING 1
ELECTRIC
CONTROLS
MECHANICAL
FUEL INDUCTION
E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT
133 AMPS TOTAL / 50 NET DEDICATED3
STEERING1
REMOTE (TILLER ACCESSORY)
TRIM METHOD1 TRAC-1 POWER TRIM AND TILT (20”) / FASTRAK™ POWER TRIM AND TILT (25”)
TRIM RANGE -4 TO 17
TILT RANGE 75 DEG
SHAFT LENGTH (IN MM) COLOR (HP)1
20” (508) BLUE OR WHITE / 25” (635) WHITE
LUBRICATION
MULTI-POINT TARGETED OILING
OIL TANK CAPACITY (L)  «OPTIONAL 10, 3, 1.8 GAL»
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL   87 OCTANE
WARRANTY
«3-YEAR, NON-DECLINING»
