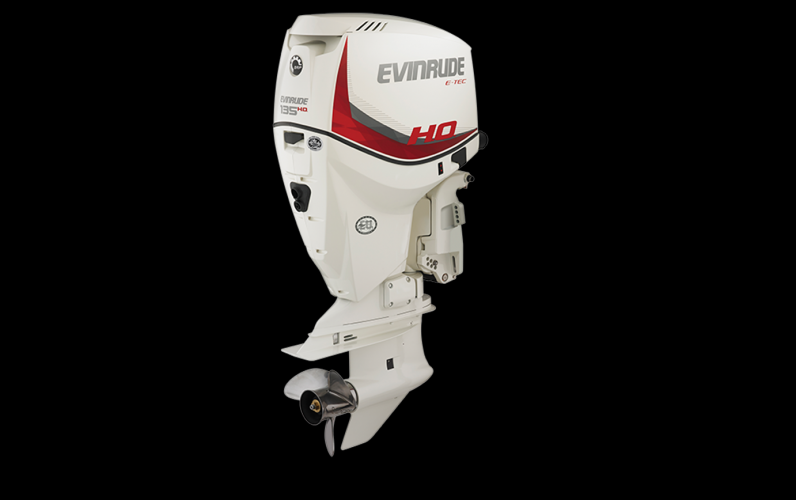

E-TEC 135 HO

BRAND: EVINRUDE
TYPE: H.O. SERIES
MODELO: H.O. SERIES
VERSION: 135 H.O.
SPECIFICATIONS
ENGINE MODEL
«E135DHL (BLUE), E135HSL (WHITE), E135DHX (WHITE), E135HCX (WHITE)»
ENGINE TYPE     V6 60° E-TEC D.I.
BORE X STROKE IN (MM) 3.601 X 2.588 (91 X 66)
DISPLACEMENT CU IN (CC) 158.2 (2592) 2.6L
GEAR RATIO (SHAFT LENGTH)1   1.86:1 20” MODELS / 1.85:1 25” MODELS
FULL THROTTLE RPM RANGE  5500-6000 RPM
WEIGHT IN LBS (KG) (HP)2  418 (190KG) 20” MODELS / 433 (196KG) 25” MODELS
STARTING 1 ELECTRIC
CONTROLS MECH. / ICON EST DIGITAL (ACC’Y) MECH. OR ICON EST DIGITAL
FUEL INDUCTION  E-TEC DIRECT INJECTION WITH STRATIFIED LOW RPM COMBUSTION MODE
ALTERNATOR OUTPUT   133 AMPS TOTAL / 50 NET DEDICATED3
STEERING1
REMOT
TRIM METHOD1
FASTRAK™ POWER TRIM AND TILT
TRIM RANGE -6 TO 15
TILT RANGE  75 DEG
SHAFT LENGTH (IN MM) COLOR (HP)1
20” (508) BLUE OR WHITE / 25” (635) WHITE
LUBRICATION
PINPOINT OILING
OIL TANK CAPACITY (L)
«10, 3 OR 1.8»
RECOMMENDED OIL
EVINRUDE/ JOHNSON XD-100 OIL
RECOMMENDED FUEL
87 OCTANE
COUNTER ROTATION
E135HCX
WARRANTY
«3-YEAR, NON-DECLINING»
EMISSIONS COMPLIANCE
«EPA 2013, CARB 3 STAR, EUROPEAN UNION»
